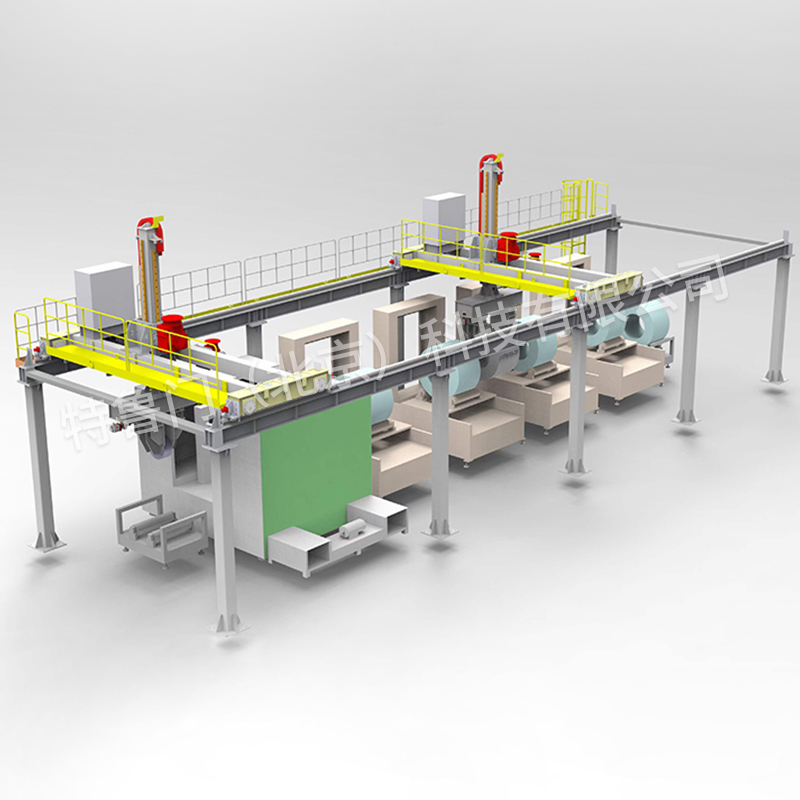

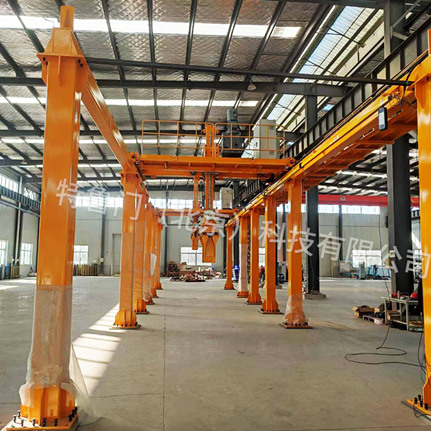

This set of equipment is a large-stroke heavy-duty truss manipulator designed and manufactured by Truman. The X-axis stroke reaches 18 meters and the weight of the transported product can reach 3.7 tons. It is a heavy-duty truss manipulator. Because there is no movement in the Y-axis direction and only movement in the X-axis and Z-axis directions, it is a two-axis truss manipulator.
The X-axis stroke of the billet handling truss manipulator is from the first station to the sixth station of the inlet clamp claw, with a stroke of 15170mm. The X-axis stroke of each action is the distance between the two stations.
In the automatic mode, the manipulator carries out transportation operations between two stations, and there is no cross-station transportation; in manual mode, the manipulator can carry out cross-station transportation operations.
Parameters of the workpiece captured by the truss manipulator:
The outer diameter of the product is 450-1278mm, the inner diameter is 150-700mm, the width is 218-787mm, and the weight is ≤3.7 tons.
