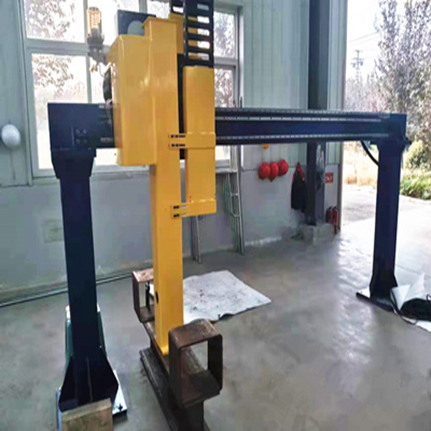

Crystal tray feeding two axis truss manipulator
Crystal tray feeding two axis truss manipulator

Crystal tray feeding two axis truss manipulator

Model NO.
TM-HJ-2.6m/1m-100kg
Quantity:

晶托上料二轴桁架机械手是应用在太阳能光伏片粘胶输送线上，可以自动抓取工件搬运到指定位置，完成晶托自动上料作业。

根据客户所提出的工艺要求、设备技术条件和服务要求，综合考虑桁架机械手设备的适用性、先进性和可靠性，选择具有性价比高的设备，设计制定合理的工艺技术方案，满足生产节拍要求。

晶托上料二轴桁架机械手布局：

整体实施方案是由立柱、横梁、机械手、电气控制系统等组成，可以在X轴和Z轴两个方向进行直线运动。


晶托上料二轴桁架机械手技术参数：

设备载荷100kg定位精度±0.1mm
X轴行程2600mmX轴速度0.5m/s
Z轴行程1000mmZ轴速度0.2m/s
生产节拍

＜60s/件

工作时间21h
