Bucket Lid Cleaning Dual-Axis Truss Robotic Arm

The two-axis truss manipulator for barrel cover cleaning can complete the task of transporting barrel covers between workstations, and can interact with the AGV system and cleaning system for information. Realize the automation of the barrel cover cleaning and capping process.

Overall plan and layout

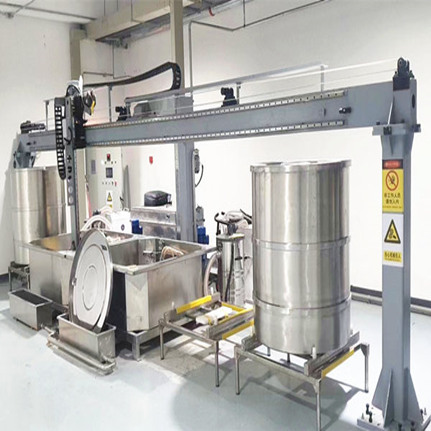

Two-axis truss manipulator for barrel cover cleaningIt is mainly composed of truss manipulators, cleaning machines and other equipment. The entire system is divided into lid loading station, lid cleaning station 1, lid cleaning station 2, clean lid buffering station, and lid closing station. The main structure of the overall equipment is welded with Q235A steel. The two-axis truss manipulator is composed of X-axis, Z-axis, clamping jaws, and columns. The X/Z-axis is driven by a servo motor to drive a planetary reducer, a synchronous belt, and a rack and pinion drive. The clamping jaw is composed of a suction cup and a cover mechanism to meet the customer's load, speed, and accuracy requirements.

Equipment parameters

Workflow

When the cleaning station is free, the truss manipulator is responsible for grabbing a single bucket lid and putting it into the cleaning equipment for cleaning. The cleaned bucket lids are picked up by the truss robot and placed in the clean lid buffer station or directly to the lid closing station to complete the lid closing.

The equipment implements various national, industry, and enterprise standards and adopts modular structural design. It has the characteristics of simple structure, convenient installation and maintenance. The quality of the equipment starts from the raw materials. All metal surfaces under the coating are treated by sandblasting and rust removal. The surface is degreased, pickled, phosphated, and coated. The surface paint has strong adhesion to avoid dead corners and dark corners where pests breed due to peeling and corrosion of the paint coating under extreme climate conditions. Truman Company focuses on the design and manufacturing of various types of truss manipulators, and customizes various types of manipulators according to customer needs and actual conditions. Welcome to consult and order!
