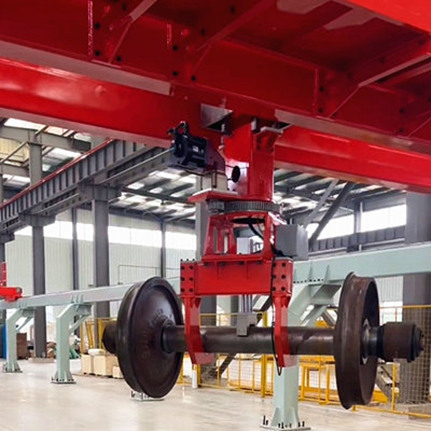

The train wheel set handling truss manipulator adopts a gantry frame structure and is composed of columns, X-axis beams, Y-axis moving modules, Z-axis lifting modules and R-axis rotating modules. The overall load capacity is up to 2T. It is used in the wheel set turning and repairing production line. The designed production capacity is 144 wheels sets/day, which can meet the handling needs of train wheel set components.
one,Train wheelset handlingTruss manipulator
2. Equipment parameters
| Equipment load | 2000kg | Positioning accuracy | ±5mm |
| X-axis travel | 33m | X-axis speed | 0~0.3m/s |
| Y axis travel | 5m | Y axis speed | 0~0.3m/s |
| ZShaft travel | 1.2m | Z-axis speed | 0~0.2m/s |
| Raxis rotation | 90° | Rotation speed | 30°/s |
