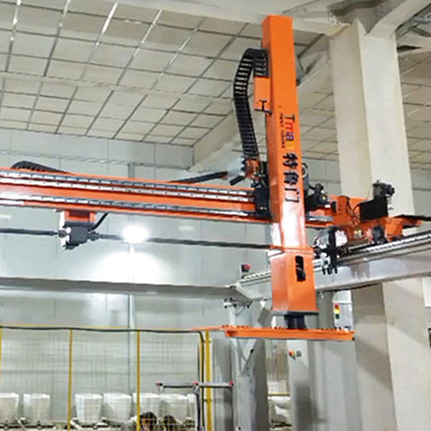

Quantitative automatic loading truss robot system
Quantitative automatic loading truss robot system

Quantitative automatic loading truss robot system

Model NO.
TM-HJ-18m/8m/3m/360°-2000kg
Quantity:

定量自动装车桁架机械手系统应用于客户产品码垛自动装车需求，以替代人工作业，保证装车的效率。需求方要求定位精度在±10mm（实际可做到±2mm），环境温度在15~50℃。

桁架机械手布局：

桁架机械手能够实现X，Y，Z方向的直线运动，Z轴末端配置端拾器配置推出器。

码垛自动装车机械手结构示意图如下图所示：

龙门式桁架机械手主要技术参数

项目

技术指标

项目

技术指标

X方向行程

18m

负载（包括吸盘夹爪重量）

2吨

Y方向行程

8m

绝对定位精度

±10mm

Z方向行程

3m

环境温度

-15℃~50℃或-10℃~50℃

Z轴末端旋转角度

360°

应用场合

室外遮阳棚，非封闭式

Z轴旋转定位精度

±0.1°~±0.3°

桁架平均运行速度

1m/s

码垛机械手设备尺寸图：

码垛装车机械手尺寸图
