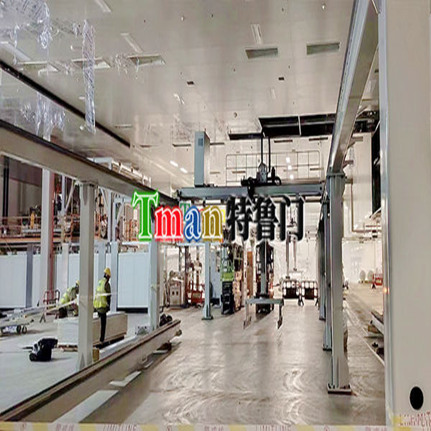

Large stroke coil material loading and unloading 4-axis truss robot
Large stroke coil material loading and unloading 4-axis truss robot

Large stroke coil material loading and unloading 4-axis truss robot

Model NO.
TM-HJ-33m/5m/1.2m/90°-600kg
Quantity:

特鲁门大行程卷料上下料桁架机械手专为新能源行业覆膜卷的自动化生产设计，其核心功能覆盖“原料卷料→缓存位→复合机”的全流程自动化。通过四轴（X/Y/Z轴+旋转轴）联动，机械手可精准抓取卷料并放置于缓存位，实现生产节奏缓冲，避免复合机因上料延迟停机。机械手从缓存位抓取卷料后，通过高精度伺服驱动将其放置于复合机放卷辊或上料平台，适应高速复合工艺。


设备参数表

设备载荷600kg定位精度≤±1mm/10m
X轴行程110mX轴速度0~1m/s
Y轴行程6.5mY轴速度0~1m/s
Z轴行程2mZ轴速度0~0.5m/s
R轴旋转180°

特鲁门大行程卷料上下料桁架机械手通过模块化设计、智能化控制与高精度运动技术，为新能源行业覆膜卷生产提供了高效、可靠的自动化解决方案
