Heavy-duty bar handling three-axis truss manipulator

Heavy-duty handling truss manipulators are mainly used for fixed-point loading, unloading and grabbing of materials. With automatic control functions, they can automatically adapt to the working conditions of the production line; there are two axes, three axes, four axes, etc. Our company's truss manipulator has the characteristics of compact structure, high strength, good rigidity and high positioning accuracy.

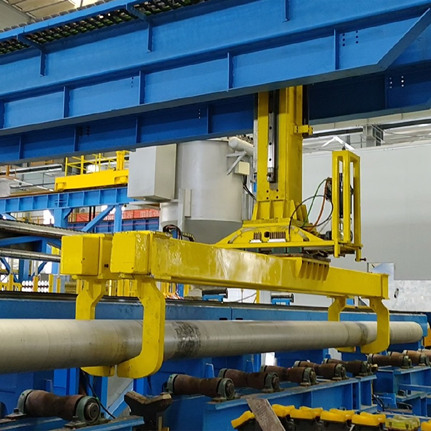

This set of heavy load truss manipulator is used for handling round steel bars. It is a three-axis truss manipulator with X-axis, Y-axis, and Z-axis.

Advantages of heavy-duty bar material handling truss manipulator:

1. Using high-strength structural steel, the overall strength is high and it is not easy to vibrate and shake. The roller guide motion mechanism has extremely strong load-bearing capacity and excellent rigidity.

2. The heavy-duty truss manipulator has low installation and adjustment requirements, and the structural design is easy for personnel to understand, simple to operate and easy to maintain.

3. High cost performance. Compared with joint robots of the same load capacity, the cost of heavy-duty truss manipulators is lower.

4. It has a long service life and is not susceptible to failure and damage due to processing accuracy and lubrication like ordinary linear guide sliders.

5. Heavy-duty truss manipulators are generally placed above the equipment and do not occupy ground space, which is more conducive to workshop planning and operation convenience.

6. It can be configured as a fully closed-loop system, which will detect in real time whether the instructions issued by the robot control system are consistent with the actual position. When the Z-axis detects falling downwards, it can be mechanically locked to prevent safety accidents.

7. The heavy-duty truss manipulator is easy to maintain, and the guide rail is extremely easy to maintain. Even if it is damaged, it is extremely convenient to replace.

Heavy-duty truss manipulator powered by servo motorDriven by gear racks and roller guides, the operation is stable and the positioning is accurate. The end of the robot arm is equipped with a corresponding mechanical claw, which is often used in product handling, palletizing, loading and unloading trucks, loading and unloading kilns, and machine tool loading and unloading. Truman has also developed five-axis and six-axis truss manipulators for production and processing, such as milling, drilling, trimming, grinding, cutting, welding, etc. Truman's heavy-duty truss manipulator is made of high-strength steel and has the characteristics of high strength, strong load-bearing capacity, stable operation and easy maintenance.
